Bootloading the Monitor

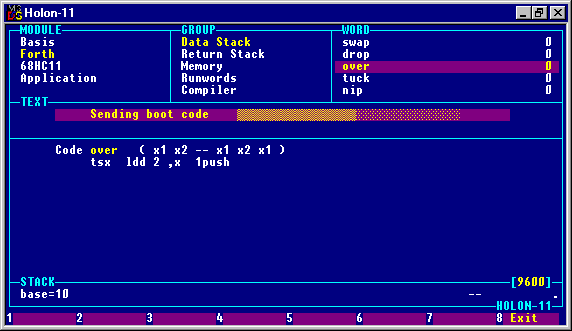

Holon 11 includes a facility to transfer the monitor to the target. The Bootload command waits for the boot signal from the target and then sends the monitor. -- Back

• Holon 11 sends the file BOOTLOAD.COD.
• Holon is set up for 9600 baud, which requires a 2 MHz system clock in the 68HC11.
• You can use higher baud rates, but don't need to. The transmisson rate is not critical in Holon since you rarely transmit large amounts of code. If you change the program, only the change needs to be transferred.
• The monitor IMON operates in the internal system RAM of the 68HC11. IMON is very useful for testing new target hardware, since it runs even if the external memory is not yet working.
